Product Description

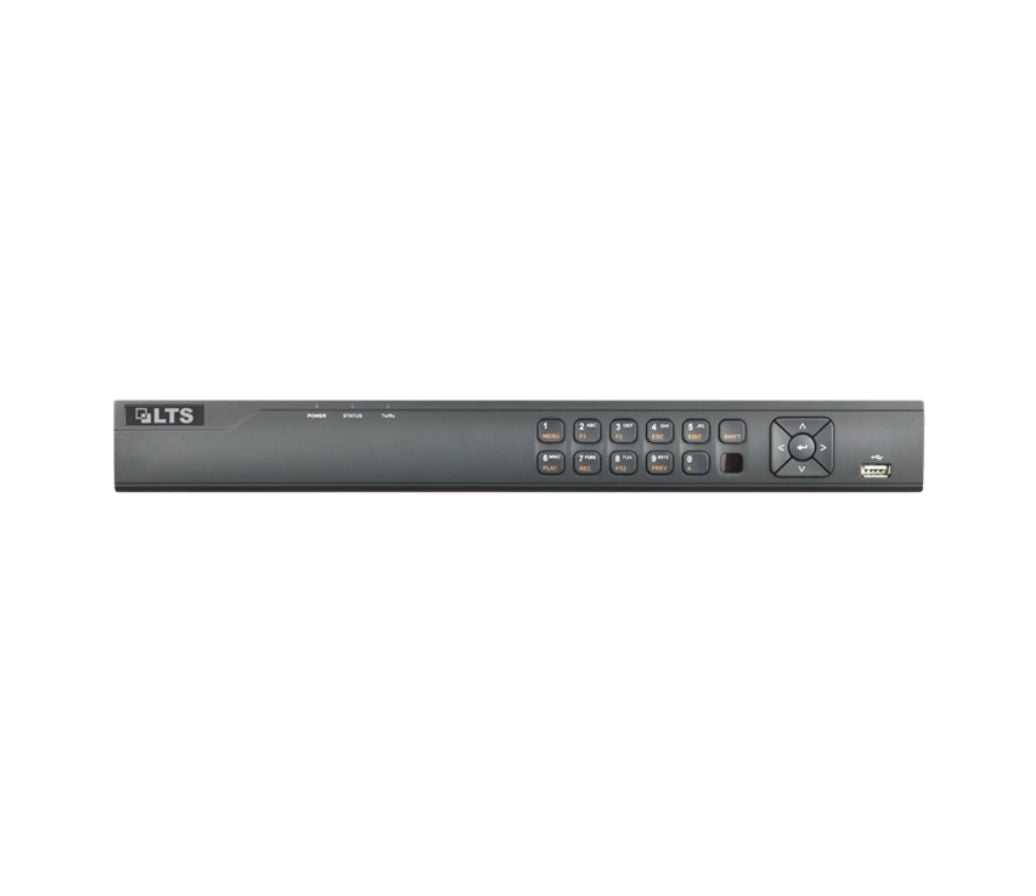

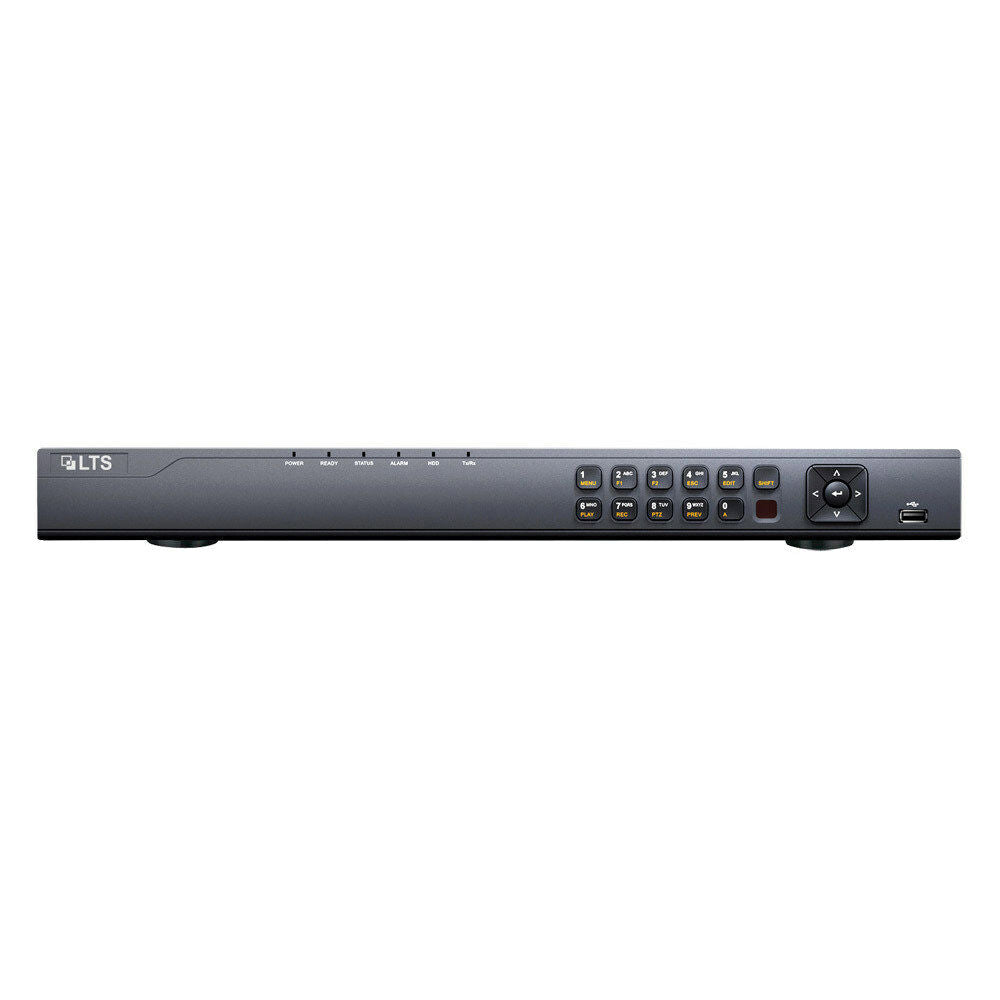

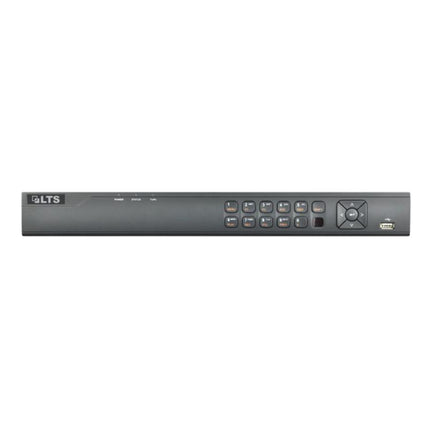

Turbo Smart HD-TVI DVR
HD-TVI DVR with H.265 Pro+, deep learning-based motion detection 2.0 for all analog channels
Specifications
Model LTD8508M-ST
Motion Detection 2.0?
Human / vehicle analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog
channels. It can classify human and vehicle targets and vastly reduce false
alarms caused by objects like leaves, animals and light changes.
Quick search by object or event type is supported.
Perimeter Protection?
Human / vehicle analysis Up to 4 channels
Recording
Video compression H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Encoding resolution
Main stream:
8 MP @ 8 fps / 5 MP @ 12 fps / 4 MP @ 15 fps / 3 MP @ 18 fps
1080p / 720p /WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N)
Sub-stream:
WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)
Video bit rate 32 Kbps to 10 Mbps
Dual stream Supported
Stream type Video, Video & Audio
Audio compression G.711 u
Audio bit rate 64 Kbps
Video and Audio
IP video input2
4 channels (up to 12)
Enhanced IP mode on:
8 channels (up to 16), each up to 4 Mbps
Up to 8 MP resolution
Supports H.264 / H.264+ / H.265 / H.265+ IP cameras

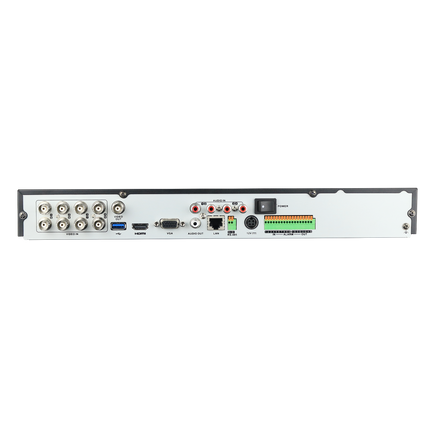

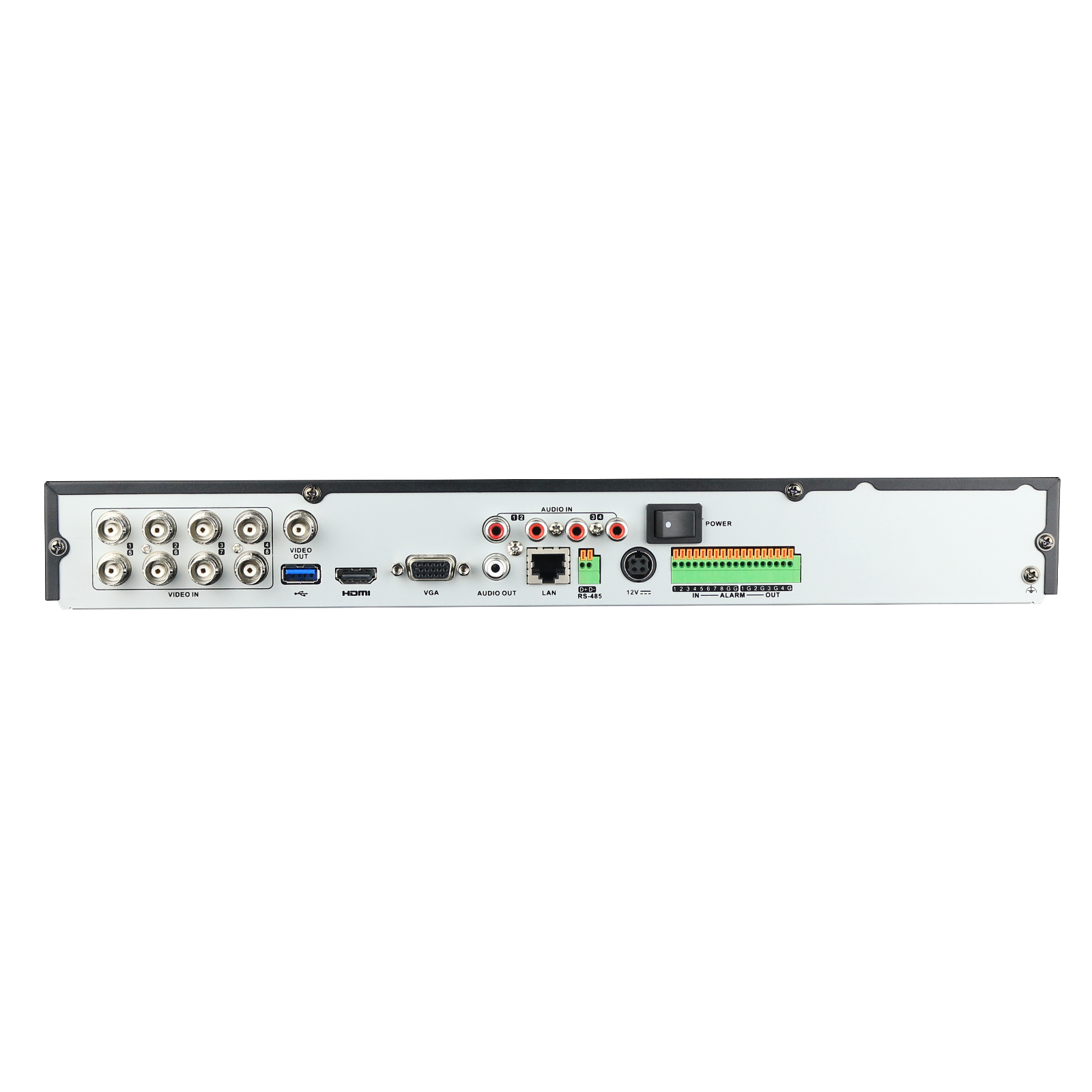

Analog video input
8 channels
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
HDTVI input 8 5, 4, and 3 MP; 1080p @ 30 fps or 25 fps; 720p @ 60, 50, 30 or 25 fps
AHD input 5 &4 MP; 1080p @ 25 or 30 fps; 720p @ 25 or 30 fps
HDCVI input 4 MP; 1080p @ 25 or 30 fps; 720p @ 25 or 30 fps
CVBS input PAL/NTSC
CVBS output
1 channel, BNC (1.0 Vp-p, 75 ?)
Resolution: PAL: 704 ? 576, NTSC: 704 ? 480
VGA output 1 channel, 1920 ? 1080 @ 60 Hz
1280 ? 1024 @ 60 Hz
1280 ? 720 @ 60 Hz
1024 ? 768 @ 60 Hz
HDMI/VGA simultaneous output
HDMI output 1-channel, 4K (3840 ? 2160) @ 30 Hz
2K (2560 ? 1440) @ 60 Hz
1920 ? 1080 @ 60 Hz
1280 ? 1024 @ 60 Hz
1280 ? 720 @ 60 Hz
1024 ? 768 @ 60 Hz
HDMI / VGA simultaneous output
Audio input
1 ch, RCA (2.0 Vp-p, 1 K?)
8 channels via coaxial cable
Audio output 1 ch, RCA (Linear, 1 K?)
Two-way audio 1 ch, RCA (2.0 Vp-p, 1 K?) (using the audio input)
Synchronous playback 8 channels
Network
Remote connections 64
Network protocols
TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,
ONVIF
Network interface 1 x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary interface
SATA 2 x SATA interfaces
Capacity Up to 10 TB storage capacity for each HDD
Serial interface RS-485 (half-duplex)
USB interface
Front panel: 1 ? USB 2.0
Rear panel: 1 ? USB 3.0
Alarm in/out N/A
General
Power supply 12 VDC, 2.8 A
Consumption
(without HDD) ? 15 W
Operating temperature 14? to 131? F (-10? to 55? C)
Operating humidity 10% to 90%
Dimensions (W ? D ? H) 15.0 ? 12.6 ? 1.9 in. (380 ? 320 ? 48 mm)
Weight (without HDD) ? 13.9 lbs (78 kg)
