Product Description

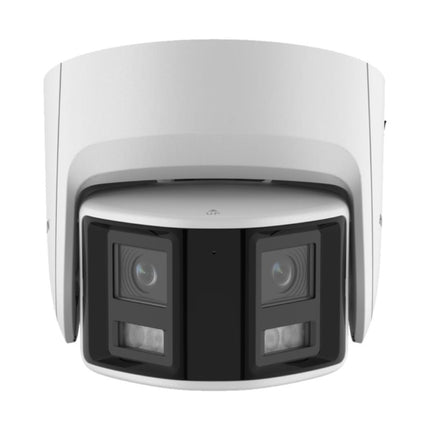

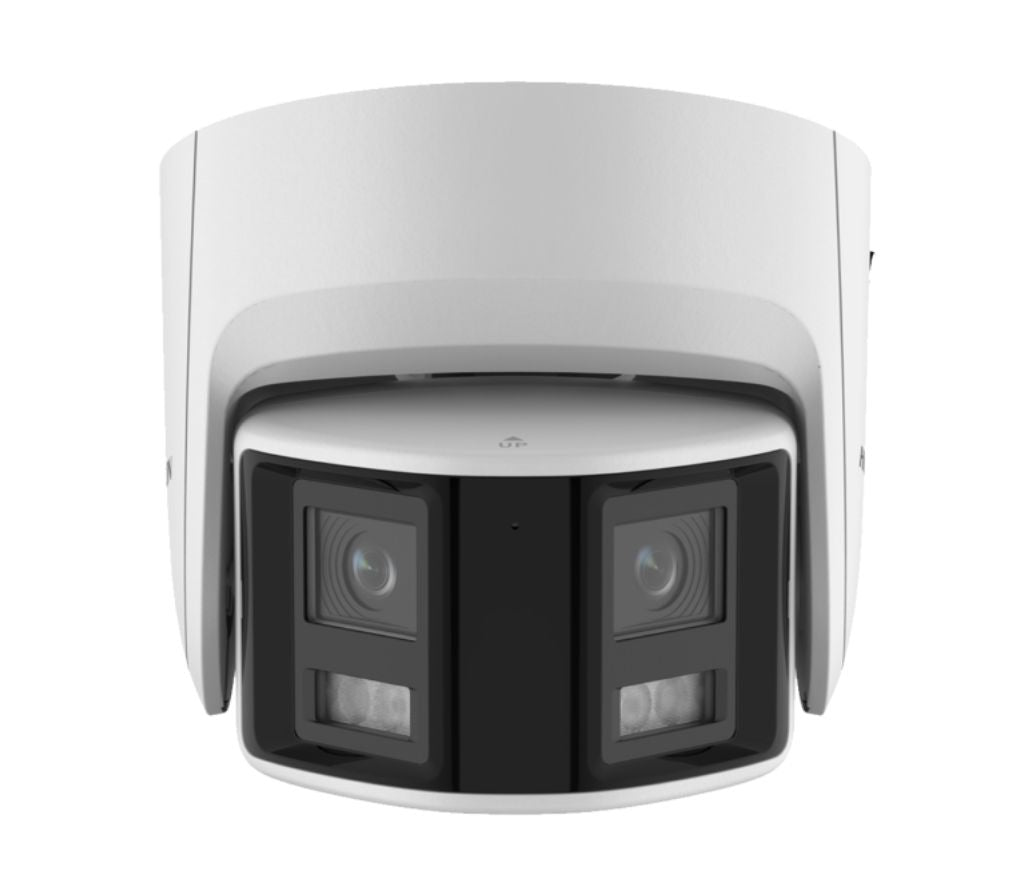

Platinum 6 MP Panoramic Fixed Turret IP Camera

This 6 MP Panoramic Turret IP Camera provides colorful imaging 24/7 with advanced f 1.0 lenses, high performance sensors and friendly lighting. Its super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

Specifications
Camera
Image Sensor 2 ? 1/2.5" Progressive Scan CMOS
Max. Resolution 3632 ? 1632
Min. Illumination Color: 0.0005 Lux @ (f 1.0, AGC on), 0 Lux with supplemental light
Shutter Speed 1/3 to 1/100,000 sec.
Angle Adjustment Pan: -30? to 30?, tilt: -75? to 75?
Lens
Lens Type Fixed focal lens, dual lens, 2.8 mm
Focal Length & FOV 2.8 mm; horizontal: 180?, vertical: 81?
Lens Mount M12
Iris Type Fixed
Aperture f 1.0
Depth of Field 2 m to ?
Detection, Observation, Recognition, Identification (DORI)
Ranges (Approx.) 2.8 mm, D: 147 ft (45 m), O: 57 ft (17.5 m), R: 30 ft (9 m), I: 15 ft (4.5 m)
Supplemental Lighting
Type White
Range Up to 98 ft (30 m)
Technology Smart
Video
Main Stream
50 Hz: 20 fps (3632 ? 1632)
60 Hz: 20 fps (3632 ? 1632)
Sub-Stream
50 Hz: 20 fps (1200 ? 536, 960 ? 432)
60 Hz: 20 fps (1200 ? 536, 960 ? 432)
Video Compression
Main stream: H.265+ / H.265 / H.264+ / H.264
Sub-stream: H.265 / H.264 / MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region(s) for main stream
Audio
Audio Type Mono
Audio Compressions G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rates
64 Kbps (G.711 ulaw / G.711 alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) /
32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
Audio Sampling Rates (kHz) 8 / 16 / 32 / 44.1 / 48
Environmental Noise Filtering Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket,
Websockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User / Host
Up to 32 users
3 user levels: Administrator, operator, and user
Security
Password protection, complex password, HTTPS encryption, 802.1X authentication
(EAP-MD5), watermark, IP address filter, basic and digest authentication for
HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface,
RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host
authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Web Browsers
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
Local service: Chrome 57.0+, Firefox 52.0+
Imaging
Image Parameter Switching Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client
software or web browser
Day / Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ? 52 dB
Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Interface 1 x RJ45 10/100 Mbps self-adapting Ethernet port
On-Board Storage Built-in memory card slot, supports MicroSD / SDHC / SDXC cards up to 256 GB
Built-in Microphone Yes
Built-in Speaker Yes; max. power consumption: 1.2 W; max. sound pressure level: 10 cm: 95 dB
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp,
input impedance: 4.7 K?, interface type: non-equilibrium
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp,
output impedance: 100 ?, interface type: non-equilibrium
Alarm 1 input(s), 1 output(s) (max. 24 VDC / 24 VAC, 1 A)
Reset Key Yes
Event Types
Basic
Motion detection (supports alarm triggering by specified target types (human and
vehicle)), alarm input and output, flashing light, audible alarm output,
exceptions / anomalies
Smart Line crossing, intrusion, region entrance, region exiting (support alarm triggered by
specified target types (human and vehicle)), and scene change detections
Linkage
Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger
alarm output, trigger recording, trigger capture, audible warning, white flashing light
General
Power
12 V DC ? 25%, 0.88 A, max. 10.5 W, ?5.5 mm coaxial power plug, reverse
polarity protection,
PoE: 802.3 af, Class 3, 36 to 57 V, 0.35 to 0.22 A, max. 12.5 W
Materials Base: metal, cover: metal
Camera Dimensions ? 5.5 ? 5.7 in. (? 140 mm ? 145.6 mm)
Shipping Dimensions 9 ? 9 ? 9 in. (230 ? 230 ? 230 mm)
Weight Approx. 2.0 lbs (920 g)
Package Weight Approx. 3.7 lbs (1,680 g)
Operating Conditions -22? to 140? F (-30? to 60? C). Humidity 95% or less (non-condensing)
Storage Conditions -22? to 140? F (-30? to 60? C). Humidity 95% or less (non-condensing)
Languages (33)
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech,
Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Functions Anti-banding, heartbeat, mirror, flash log, pixel counter
Light Flashing
Certifications
EMC
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015; EN 61000-3-2:2019; EN 61000-3-3: 2013+A1:2019
EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014 / A11: 2017
Environmental
CE-RoHS: 2011 / 65 / EU
WEEE: 2012 / 19 / EU
Reach: Regulation (EC) No 1907 / 2006
Protections IP67: IEC 60529-2013
