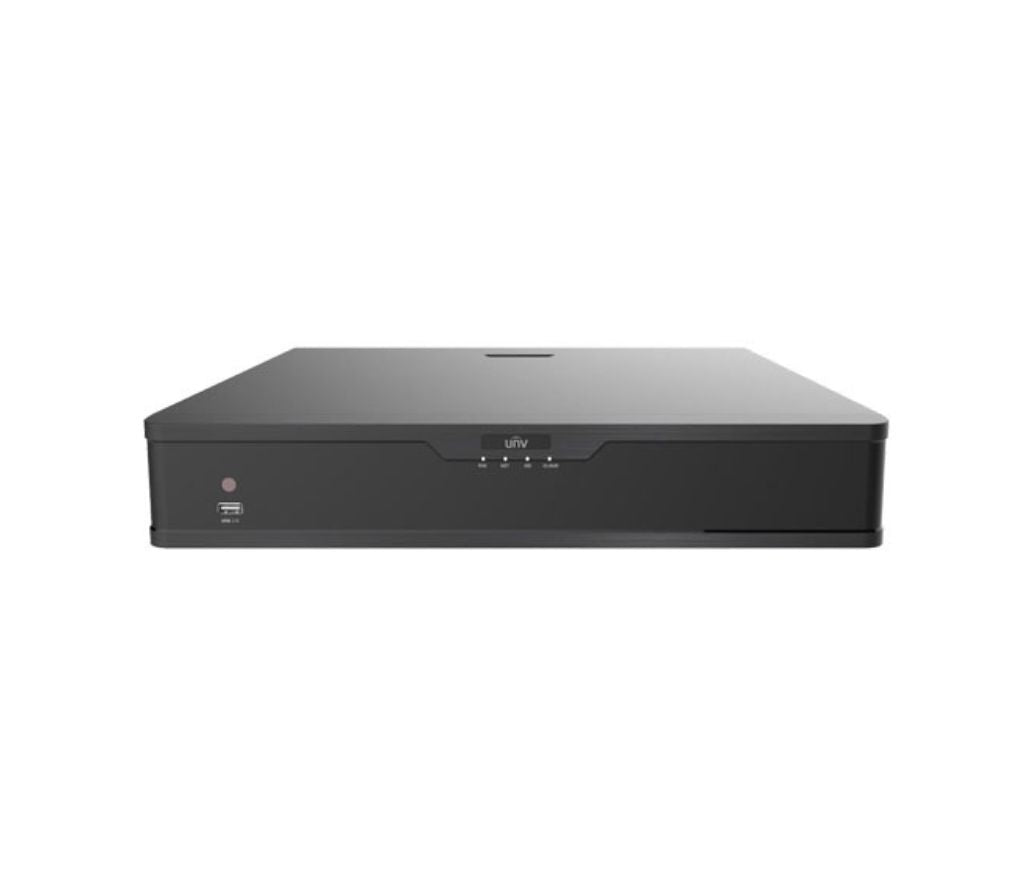

NVR304-16S-P16
NVR304-16S-P16
Out of stock
Description
Description
NVR304-S-P Series
Network Video Recorder
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
NVR304-S-P Series
Network Video Recorder
Features
Support Ultra265/H.265/H.264 video formats
16/32-channel input
Plug & Play with 16 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support HDMI and VGA simultaneous output
Up to 8 Megapixels resolution recording
4 SATA HDDs, up to 10TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Specification
Model NVR304-16S-P16 NVR304-32S-P16
Video/Audio Input
IP Video Input 16-ch 32-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output HDMI:
4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60
VGA:
1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 16-ch
Liveview display 1/4/6/8/9/16 1/4/6/8/9/16/25/36
Corridor Mode Screen 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32
Decoding
Decoding format Ultra 265/H.265/H.264
Live view/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30, 16 x 720P@30 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1@30
Hard Disk
SATA 4 SATA interfaces
Capacity Up to 10TB for each disk
Smart
VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
VCA Search Behavior Search
People counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), UMD by Camera Total 8-ch
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
RS232 NA
RS485 1
Alarm In 16-ch
Alarm Out 4-ch
PoE
Interface 16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 150W in total
Supported Standard IEEE 802.3af/at
General
Power Supply 100 ~ 240 V AC
Power Consumption: ?15W(without HDD)
Working Environment -10?C~+ 55?C (+14?F~+131?F), Humidity ? 90% RH (non-condensing)
Dimensions (W?D?H) 400mm ?362mm ? 74mm (15.7" ? 14.2" ?2.9")
Weight (without HDD) ?5kg (11.02lb)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC Part15 Subpart B, ANSI C63.4
