Technical Specifications

Data sheet PDF

Product Description

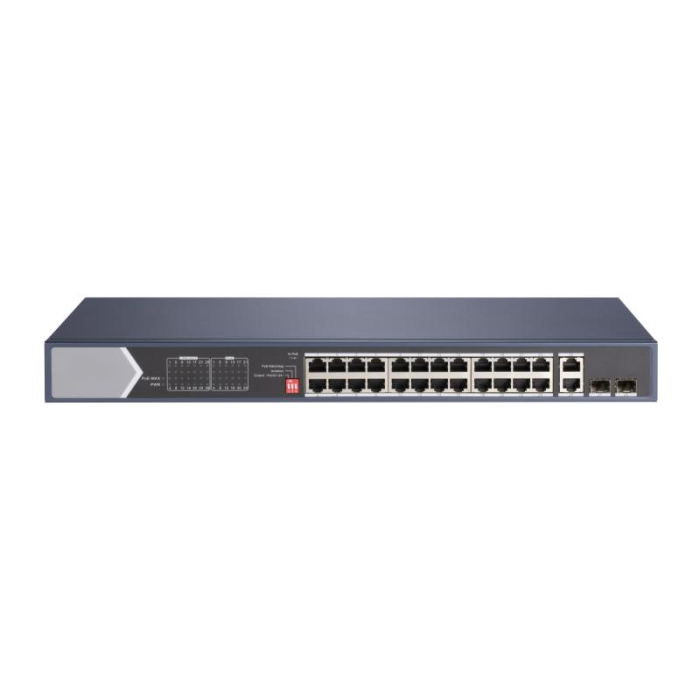

24-Port Unmanaged Gigabit POE Switch


Unmanaged POE Switch, 370 W


SPECIFICATIONS

  • 370 W
  • 2 Combo Ports
  • 20 x Gigabit PoE ports, 4 x Gigabit Hi-PoE ports, 2 x Gigabit RJ45 ports, and 2 x Gigabit fiber optical ports
  • IEEE 802.3 at / af / bt standards for Hi-PoE ports (max. 90 W PoE output)
  • IEEE 802.3 at / af standards for PoE ports (max. 30 W PoE output)
  • IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 ab, and IEEE 802.3 z standards
  • 6 KV surge protection for PoE ports
  • 4 x PoE ports support transmission up to 1,000 feet
  • PoE watchdog to auto-detect and restart the unresponsive cameras
  • Port isolation to improve network security
  • Gigabit network access
  • Wire-speed forwarding
  • Store-and-forward switching
  • Solid high-strength metal housing

SKU LTPOE-SW2402EG
