Product Description

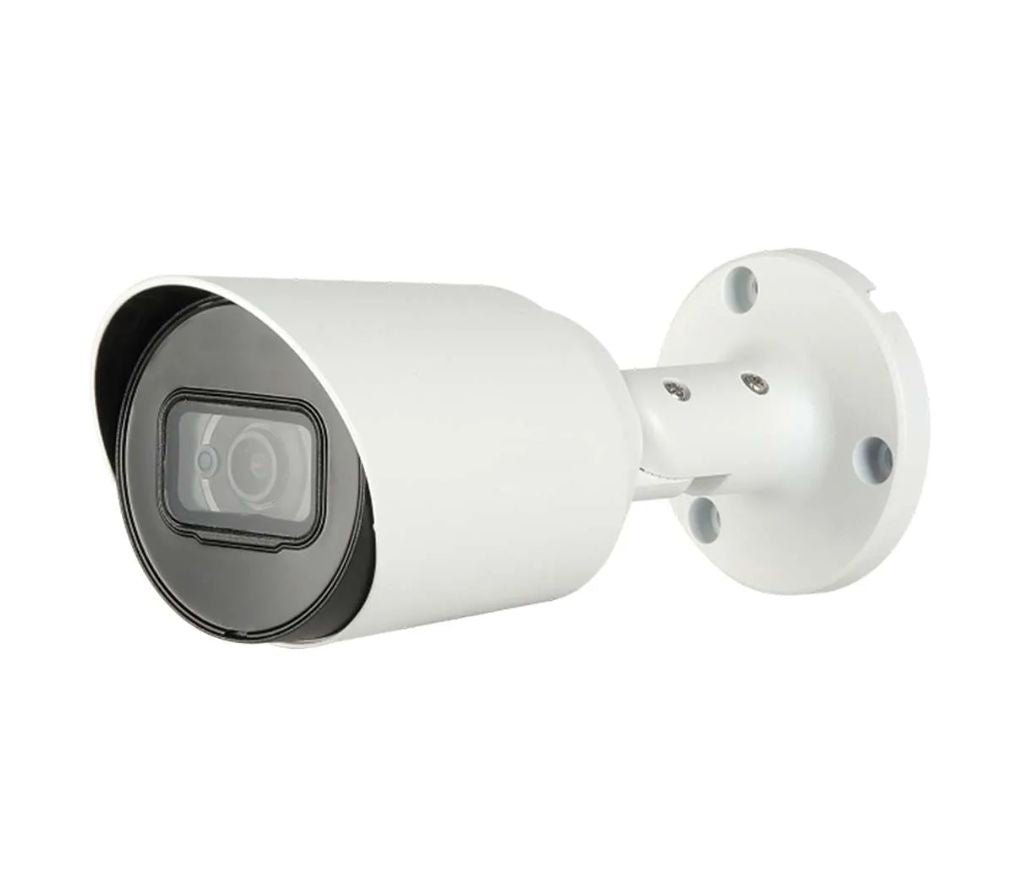

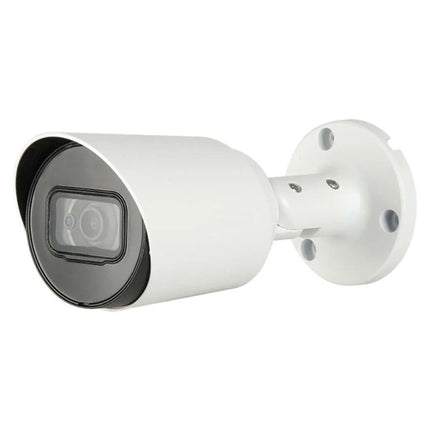

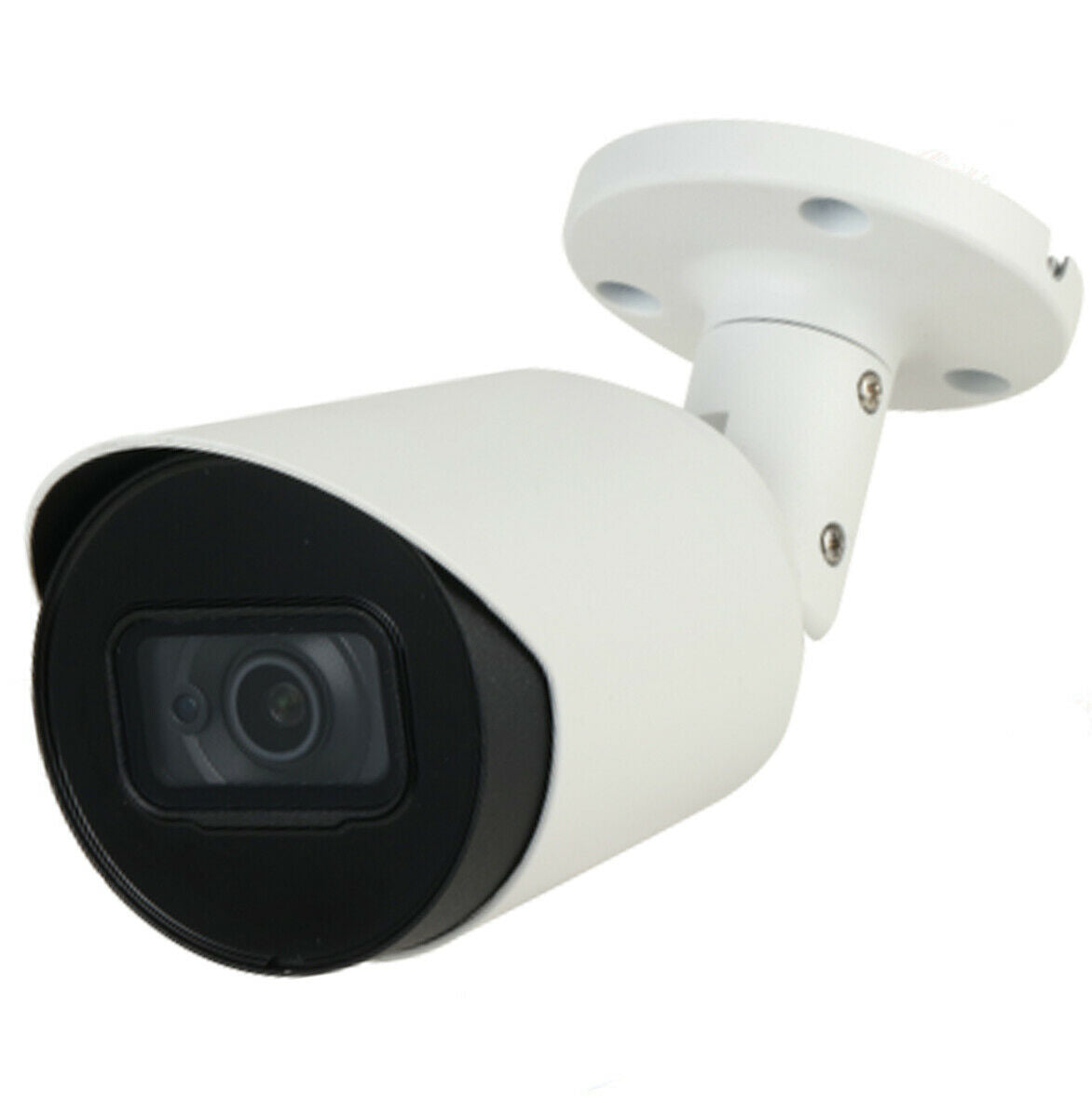

HCC3120T-IR/28 || Diamond, COAX, 2MP, Bullet, 2.8mm Fixed

? Housing: Bullet
? Resolution: 2MP
? Signal: TVI/CVI/CVBS/AHD
? Lens Category: 2.8mm Fixed
? Night Vision: Infrared / IR
? WDR: DWDR
? Water Resistance Rating : IP67
? NDAA Compliant: No
? Hardware Features:

Scheme Upgrade

Photosensitive Scheme

Photoconductor

UPGRADE

Non-Photosensitive Scheme

ADVANTAGE

1

The non-photosensitive scheme can improve the product service life, it can avoid the photoconductor damage.

2

Avoid the abnormal switching of Day/Night mode because of the environment light changes.

3

It can avoid the different switching time of Day/Night mode, when using the multiple cameras.

Comparison

• Diamond Series Coax security cameras come with a cleaner, sharper image both day and night.
• With a 1/ 2.7 ?2MP CMOS (Sensor Upgrade)

OLD

UPGRADED

OLD

UPGRADED

OLD

UPGRADED

Perimeter Protection:

(Only supported when coupled with XVR-I3 Series recorder)

• Home Entrance and Exit Protection
• Deter Asset Theft and Vandalism
• Clear Images Both Day and Night with Smart IR (98ft)
• Home or Business Perimeter Protection

1080P High Definition:

• Diamond Series coaxial security cameras push High Definition (HD) video straight to our Digital Video Recorders.
• With clear-cut live view and recording capability, our 1080P cameras provide a clear video with excellent field of view.

Smart IR:

• Provide Clear Images Both Day and Night with Smart IR Technology (98ft distance)
• Theft and Vandalism Prevention
• Home or business night-time protection

24/7 Monitoring:

• Effective Business Asset Protection
• Efficient Home Security Day and Night
• Ensure Safety and Security in Workplace

APPLICATION SCENARIOS

As the challenges have evolved, so to have the solutions. Diamond Series HD over coax security cameras provide broad area surveillance to help combat and solve your challenges! These Include:

Entrance & Exit Monitoring / Home Security

(Only supported when coupled with XVR-I3 Series recorder)

Whether it be entrance/exit, side entrance, backyard, or driveway monitoring, our Diamond Series HD Over Coax security cameras utilize Smart IR technology to provide clear visibility and excellent perimeter protection both day and night for effective home and business security.

SMB Loss Prevention & Asset Protection

24/7 monitoring with Smart IR provides enhanced safety and security for not only business assets, but also customer, patron, and employee safety.

Commercial Property & Tenant Protection

Utilize basic security and Smart IR, providing 24/7 monitoring, day and night, allowing for efficient protection of tenants and property.

Provide basic safety and security with Diamond Series HD Over Coax security cameras, in order to detect real threats in real-time, prevent vandalism, theft, and other criminalities.

• Product Description

2MP Security Camera Features

• The parameters and datasheets below can only be applied to 1200-S4 series.
• At 1080p, the maximum frame rate is 30 frames per second.
• It?s possible to switch between HD and SD outputs.
• Fixed focal length of 2.8mm
• 30m (98ft) maximum IR range, Smart IR
• IP67, DC12V
