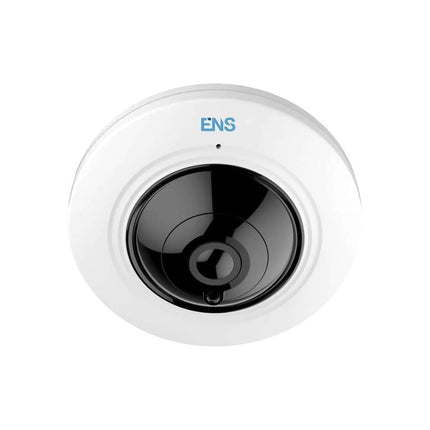

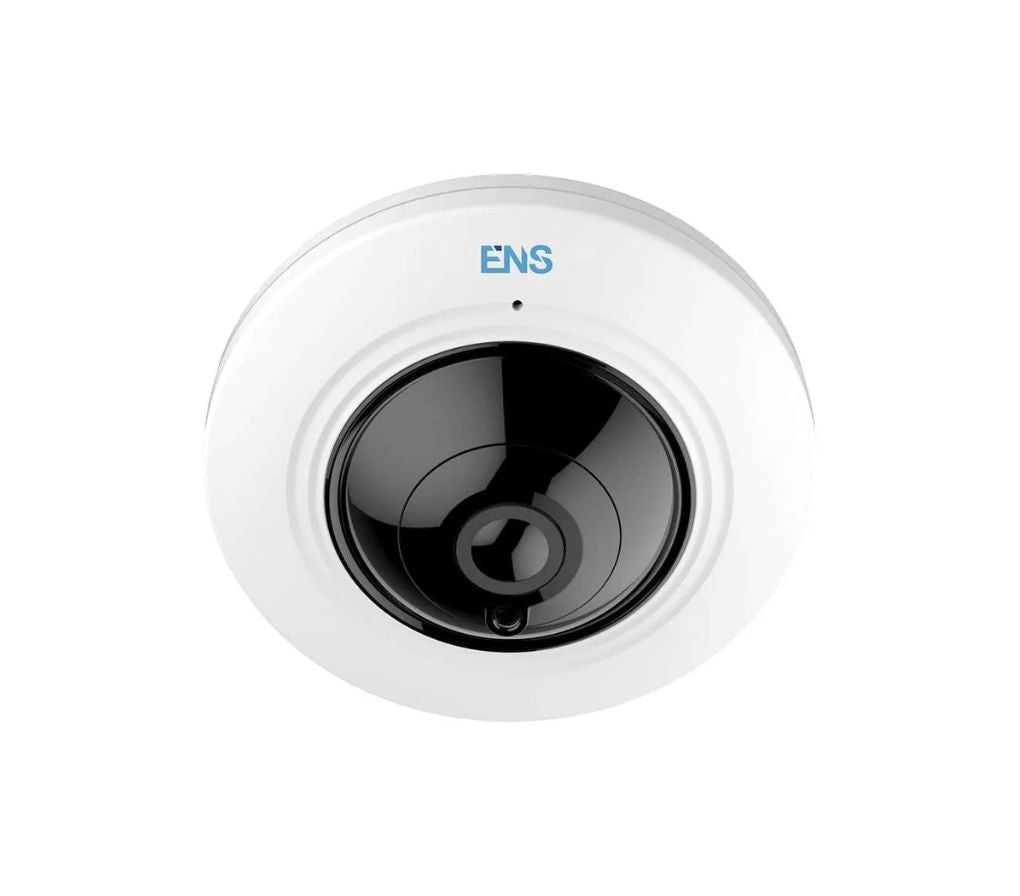

SCCSF5M/11 Tvt CCTV Camera || -H COAX 5MP Fisheye Other ?
SCCSF5M/11 Tvt CCTV Camera || -H COAX 5MP Fisheye Other ?
Hurry up, only 1 item left in stock.
Description
Description
SCCSF5M/11 Tvt CCTV Camera || -H COAX 5MP Fisheye Other ?
This listing includes:
-  (1) ANALOG CAMERA: SCCSF5M/11
SCCSF5M/11  view data sheet
SCCSF5M/11 || -H, COAX, 5MP, Fisheye, Other Fixed
? Housing: Fisheye
? Resolution: 5MP
? Signal: TVI
? Lens Category: Other Fixed
? Night Vision: Infrared / IR
? WDR: N/A
? Water Resistance Rating : N/A
? NDAA Compliant: No
? Hardware Features: Audio Out, Built-in Mic
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
SCCSF5M/11 || -H, COAX, 5MP, Fisheye, Other Fixed
? Housing: Fisheye
? Resolution: 5MP
? Signal: TVI
? Lens Category: Other Fixed
? Night Vision: Infrared / IR
? WDR: N/A
? Water Resistance Rating : N/A
? NDAA Compliant: No
? Hardware Features: Audio Out, Built-in Mic
specifications
Downloads
Accessories
Configuration
Advanced Configuration
5MP IR Fisheye Camera Features
- 5 MP high-performance CMOS
- Analog HD output, up to 5MP resolution
- 0.01Lux@(F1.2, AGC ON),0 Lux with IR
- IR cut filter with auto switch
- OSD menu
- Built-in microphone, 1-ch audio output
- Multiple viewing modes: panorama, 4 PTZ, Fisheye & 3 PTZ, etc
Camera
- Image Sensor: 5Mega Progressive Scan CMOS
- Max. Resolution: 2592(H)?1944(V)
- Min. Illumination: 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR
- Shutter Time: 1/12.5s to 1/20,000s
- Day & Night: ICR
- Angle Adjustment: Pan: 0?-30?; Tilt: 0?; Rotate: 0?
Lens
- Lens Type: 1.1mm
- Focal Length & FOV: 186?
- Lens Mount: M12
- Image Settings: Brightness, Contrast, Saturation
- Day/Night Mode: Color/BW/AUTO
General
- Dimension: ?120.4mm?54.5mm (?4.74??2.14?) Approx. 350g (0.77lb)
- Operating Condition:?-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
- Communication: Up the coax, Protocol: HIKVISION-C
- Power Supply: DC12V?15%
- Consumption: 5.5W MAX
- IR Range: 33-66ft (10-20m)
This Coaxial/ Analog Security Camera works with:
- Digital Video Recorder (DVR)
- Vision APP
- How to use Vision
| Weight | 0.928 lbs |
|---|---|
| Dimensions | 3.898 ? 4.921 ? 5.906 in |
