Product Description

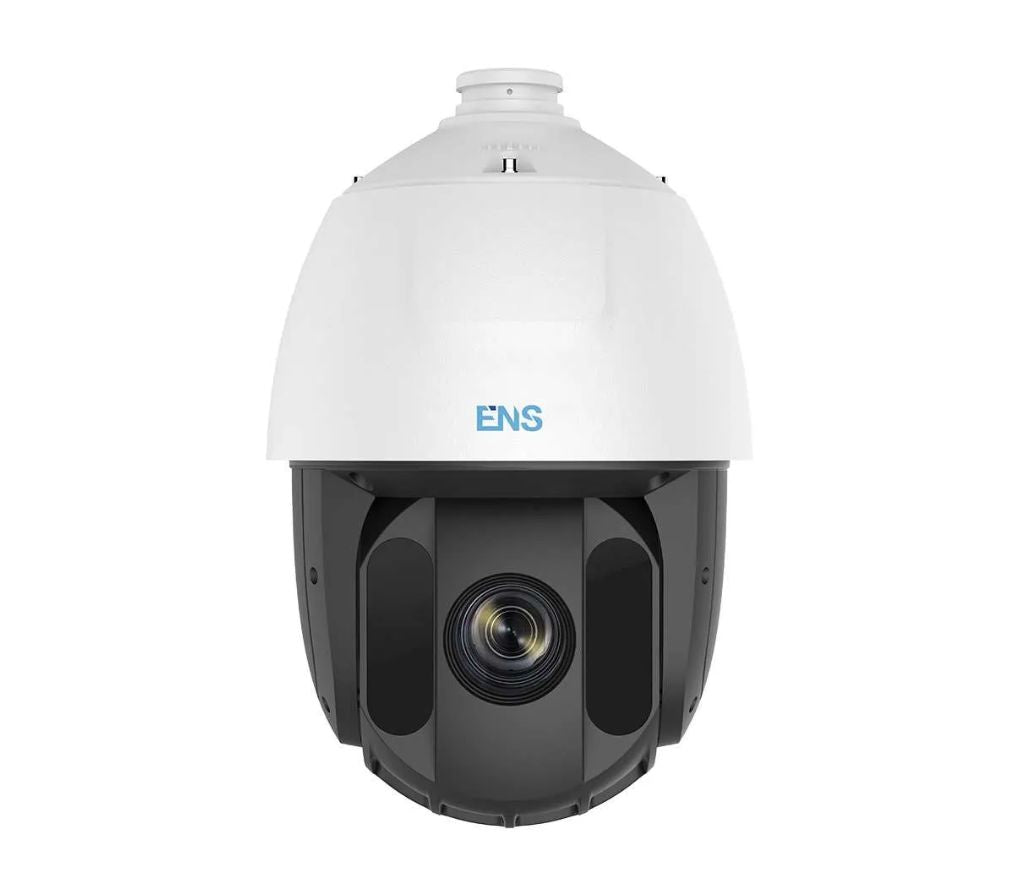

4MP 25?ZOOM Network IR Speed Dome Security PTZ SPT5C425IR-E

Pan tilt and zoom(PTZ),1/2.5?,4MP@30FPS,25X(4.8-120mm), IR(492ft), True WDR, Starlight, Auto Tracking for follows moving object for continuous monitoring in the scene, video content analytics (VCA) for security PTZ camera: Line Crossing Detection, Intrusion Detection, Face Detection, Unattended Baggage Detection, Object Removal Detection, Region Entrance, Region Exiting, Audio/ Alarm, POE++/24 VAC, Bracket not included, Power included. UL Listed professional surveillance products.Remote viewing from your mobile with Security. you can quickly and easily view your security system remotely through your smartphone, tablet, or PC. free download app and no monthly fees.


  • SPECIFICATIONS

  • Downloads

  • Accessories

  • Configuration

  • Advanced Configuration

  • Features

  • 1/2.5? progressive scan CMOS
  • Up to 2560 ? 1440@30fps resolution
  • Min. Illumination: Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.0005 Lux @(F1.5, AGC ON) 0 Lux with IR
  • 25? optical zoom, 16? digital zoom
  • WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
  • 24 VAC & PoE
  • Up to 150 m IR distance
  • Support H.265 /H.265 video compression
  • Audio input/output
  • Alarm input/output
  • FAQ: What is PTZ? PTZ is pan tilt zoom security cameras.
  • This IP Security Camera works with Networking Video Recorder( NVR), orH Series Networking Video Recorder( NVR)

    Weight 7 lbs
    Dimensions 6 ? 6 ? 6 in
