Product Description

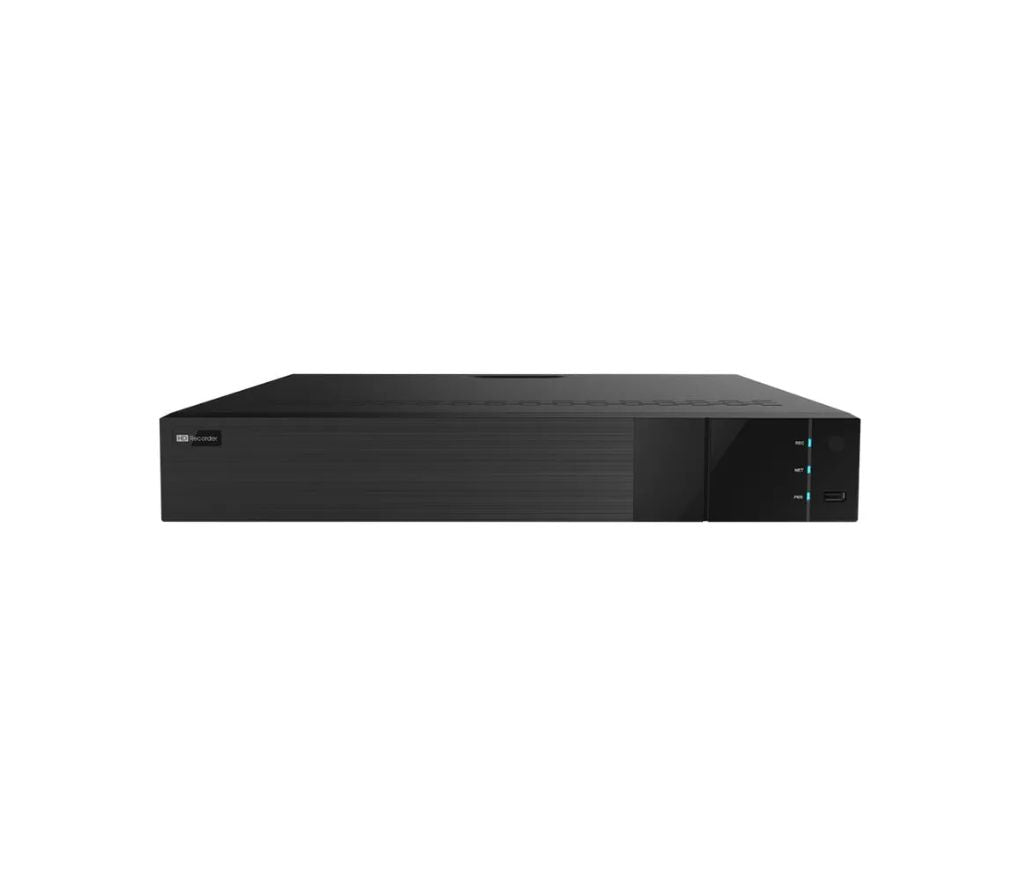

32CH Titanium 5MP Lite TVI/AHD/CVI High Definition DVR ED8432H5-D

32CH Digital Video Recorder ( DVR) ,Max. 40CH (Up to 32CH BNC/24CH IP),5MP Lite@10FPS, Bandwidth In /Out (Mb): 16Mb/40 Mb, HDMI/VGA/CVBS(or Spot), Audio/Alarm,4SATA,1ESATA.

Features

• 32 CH TVI / AHD video input, support 5MP/ 4MP / 3MP / 1080P / 720P / WD1
• 32 CH CVI video input, support 4MP / 3MP / 1080P / 720P / WD1
• 32 CH DVRs default support 8 CH IPC 5MP / 4MP / 3MP / 1080P / 960P / 720P
• Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
• Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
• Multi-mode recording: manual / timer / motion
• Playback: 16CH simultaneously playback
• Search: time slice, time, event ( manual, motion ), tag search
• Express and flexible backup via USB, network, and so on
• Pentaplex: preview, record, playback, backup, and remote access
• DHCP, DDNS, PPPoE Network protocol, IE browse, and CMS supported
• Remote control via IE or CMS: preview, playback, backup, PTZ, and configuration
• Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with a mobile device
• Multi-user online simultaneously
• Authorization management, log review, and device status review
• Support 1080P output, true high-resolution display
• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
• Support NAT function and QRCode scanning by mobile phone and PAD
• Powerful smartphone & Pad surveillance with iOS and Andriod OS

New FW1.3.5: Titanium DVR New Firmware Downloads

This Digital Video Recorder works to with: Titanium HD Cameras
