Data sheet PDF Product Description

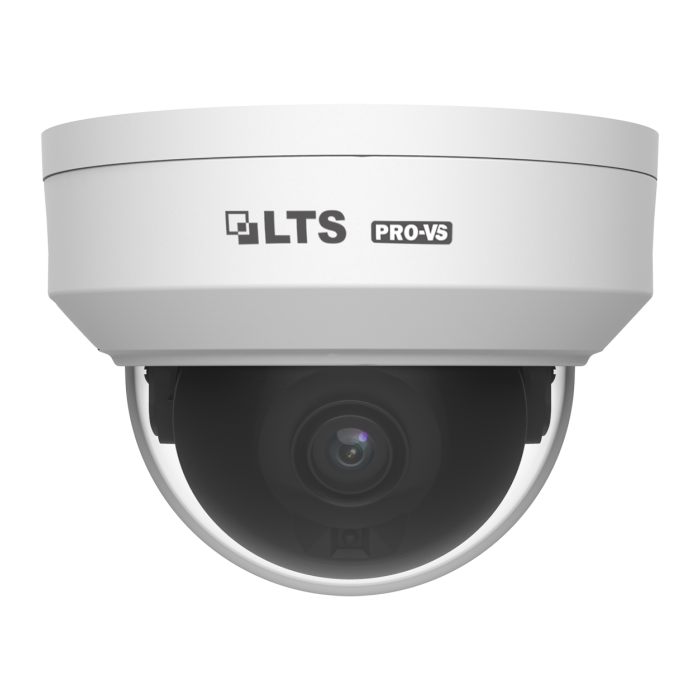

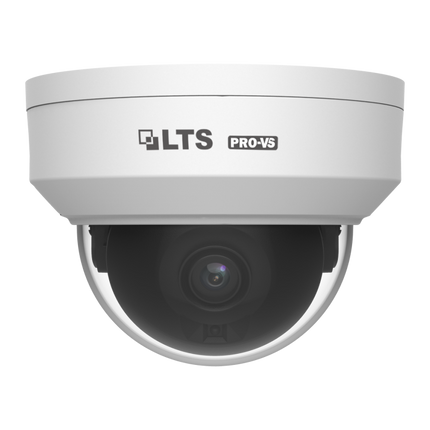

Pro-VS 4 MP Dome Fixed Camera Pro-VS 4 MP IR Fixed Dome IP Camera
Resolution: 4 MP, 2592 x 1520 @ 30 fps Fixed Lens: 2.8 mm Lux: 0.01 lux @ f 2.0 Compression: Ultra 265 / H.265 / H.264 / MJPEG IR: Smart IR LED up to 98 ft Features: 120 dB WDR, 2D / 3D DNR, BLC, HLC, Digital Defog Audio Channels In/Out Alarm Channels In/Out Storage: MicroSD up to 256 GB, Automatic Network Replenishment Range of Direction Mobility: 3 Axes Protections: IP67, IK10 vandal resistant, 2 KV Surge Power: 12V DC, PoE SPECIFICATIONS Camera
Sensor
1/3", 4.0 MP, progressive scan, CMOS
Lens
2.8 mm @ f 2.0
DORI Distance
Lens (mm)
Detect (m)
Observe (m)
Recognize (m)
Identify (m)
2.8
63.0
25.2
12.6
6.3
4.0
90.0
36.0
18.0
9.0
Angle of View (H)
95.8?
Angle of View (V)
55.2?
Angle of View (O)
124.5?
Adjustment angle
Pan: 3? ~ 360?
Tilt: 0? ~ 68?
Rotate: 3? ~ 360?
Shutter
Auto / Manual, 1 - 1/100,000 sec.
Minimum Illumination
Color: 0.01 Lux (f 2.0, AGC on)
0 Lux with IR
Day / Night
IR-cut filter with auto switch (ICR)
Digital noise reduction
2D / 3D DNR
S/N
> 56 dB
IR Range
Up to 98 ft (30 m) IR range
Wavelength
850 nm
IR On / Off Control
Auto / Manual
Defog
Digital Defog
WDR
120 dB
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main Profile
Frame Rate
Main Stream: 4 MP (2592 x 1520), Max 30 fps; 4 MP (2560 x 1440), Max 30 fps; 3 MP (2304 x 1296), Max 30 fps; 1080p (1920 x 1080), Max 30 fps
Sub Stream: 4CIF (704 x 576), Max 30 fps
Third Stream: CIF (352 x 288), Max 30 fps
Video Bit Rates
128 Kbps - 16 Mbps
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 2 areas
Motion Detection
Up to 4 areas
Imaging
White Balance
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital noise reduction
2D / 3D DNR
Smart IR
Supported
Flip
Normal / Vertical / Horizontal / 180?
Dewarping
NA
HLC
Supported
BLC
Supported
Audio
Audio Compression
G.711
Two-way audio
Supported
Suppression
Supported
Sampling Rate
8 KHz
Storage
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR
Smart
Behavior Detection
Human Body Detection
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API
Client
LTS PRO-VS Station
Web Browsers
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O
Input: impedance 35 k?; amplitude 2 V [p-p]
Output: impedance 600 ?; amplitude 2 V [p-p]
Alarm I/O
1 / 1
Network
1 x RJ45 10/100 Mbps Base-TX Ethernet
Certifications
Certifications
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power
12V DC ? 25%, PoE (IEEE 802.3 af)
Power consumption: Max 5.5 W
Dimensions (? x H)
? 4.3 x 3.2? (?108.7 x 81.1mm)
Net Weight
0.99 lb (0.45 kg)
Materials
Shield?PC
Body?plastic
Bottom plate?Metal
Operating Environments
-31? to 140? F (-35? to 60? C), Humidity: ? 95% RH (non-condensing)
Strorage Environment
-31? to 140? F (-35? to 60? C), Humidity: ? 95% RH (non-condensing)
Surge Protection
2 KV
Ingress Protection
IP67
Vandal Resistance
IK10
SKU VSIP7442W-28S CAMERA TECHNOLOGY IP / Network CAMERA SERIES Pro-VS CAMERA HOUSING Dome CAMERA RESOLUTION 4MP
